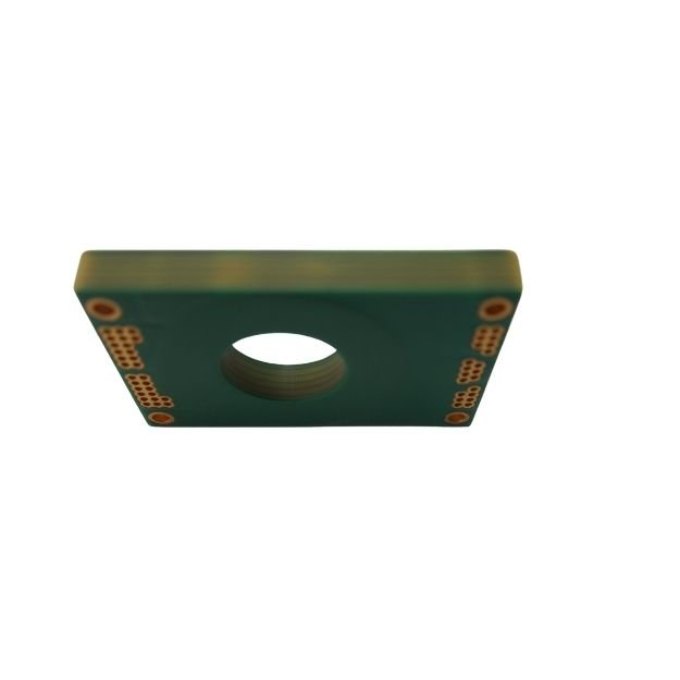

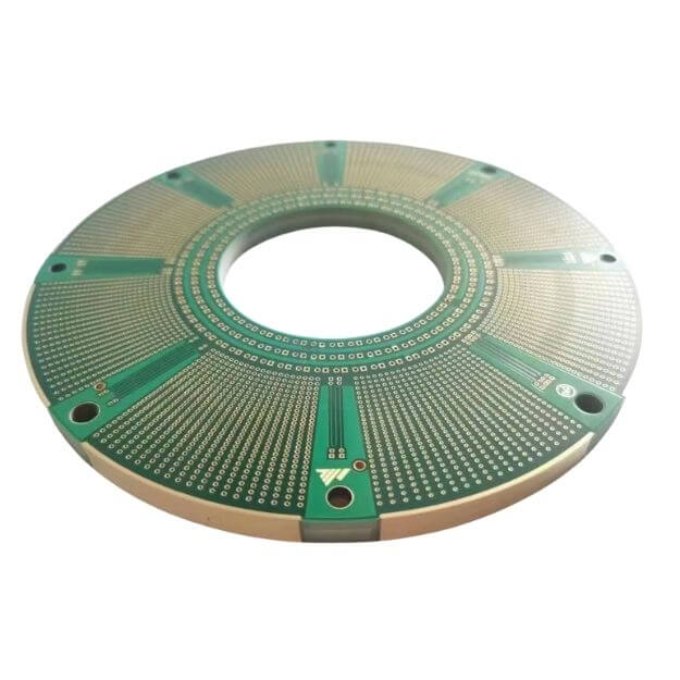

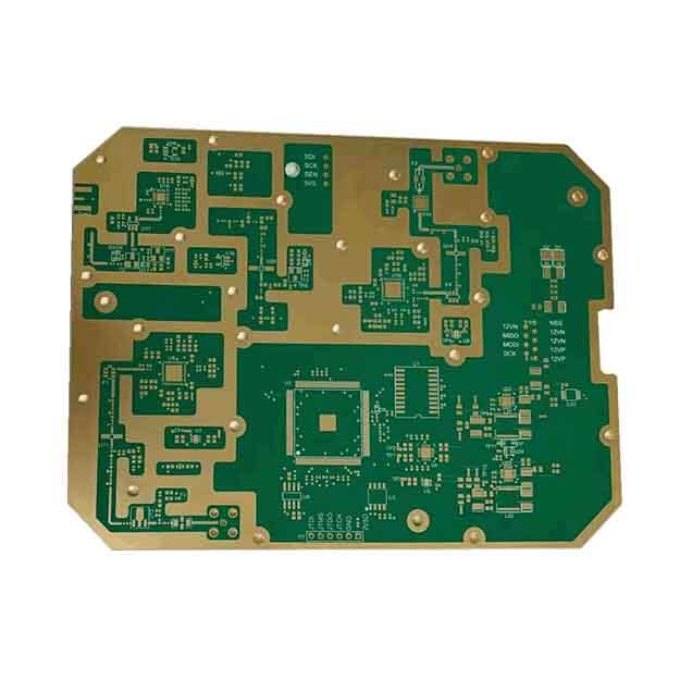

High Power PCB
Wenshu is a professional high-power PCB manufacturer in China. We can provide different types of high-power PCB for your project.
| Layer Count | 1-40layers |
| Board Thickness | 0.2-5.0mm |
| Copper Thickness | Min. 1/2 OZ, Max. 10 OZ |
| PTH Wall | 25um(1mil) |
| Maximum Board Size | 1100*500mm(43”*19”) |
| Min laser drilling size | 4mil |
Prototype to Full Turn-Key Assembly
Through-Hole Lead-Free Wave Soldering
Best Price, Genuine Components
Quality Accreditation ISO9001
-
Description
-
Specification
Wenshu is a professional high-power PCB manufacturer in China. We can provide different types of high-power PCB for your project.
- Over 12 years high power PCB manufacturing experience
- Full range of raw lamination in stock
- From single-sided layer to multilayer printed circuit board
- Certified with the USA and Canada UL
- No minimum order quantity even 1 piece
- 7/24 sales and engineering tech support
As an experienced high-power PCB manufacturer in China, Wenshu has been serving hundreds of thousands of customers at home and abroad and they are happy to work with us. Because we can ensure the delivery time and high quality for you.
Are you looking for a premier high-power PCB supplier? Wenshu is your best choice. We offer a competitive price and high quality for you.
Wenshu is a reliable PCB manufacture with over 12 years of experience. As a professional PCB supplier, we insist on providing you the best customer satisfaction level.
We always put quality first, in order to let you be satisfied with our quality, There are inspected persons in each production department. If there is any quality issue, then it’s easy to report and make adjustments.
| ltem | Capability |
|---|---|
| Layer Count | 1-40layers |
| Base Material | KB、Shengyi、ShengyiSF305、FR408、FR408HR、IS410、FR406、GETEK、370HR、IT180A、Rogers4350、Rogers4000、PTFE Laminates(Rogers series、Taconic series、Arlon series、Nelco series)、Rogers/Taconic/Arlon/Nelco laminate with FR-4 material (including partial Ro4350B hybrid laminating with FR-4) |
| Board Type | Backplane、HDI、High multi-layer blind&buried PCB、Embedded Capacitance、Embedded resistance board 、Heavy copper power PCB、Backdrill, PCB Gold Finger |
| Board Thickness | 0.2-5.0mm |
| Copper Thickness | Min. 1/2 OZ, Max. 10 OZ |
| PTH Wall | 25um(1mil) |
| Maximum Board Size | 1100*500mm(43”*19”) |
| Min laser drilling size | 4mil |
| Min.spacing/Tracing | 2.7mil/2.7mil |
| Solder Mask | Green, Black, Blue, Red, White, Yellow, Purple matte/glossy |
| Surface Treatment | Flash gold(electroplated gold)、ENIG、Hard gold、Flash gold、HASL Lead-free 、OSP、ENEPIG、Soft gold、Immersion silver、Immersion Tin、ENIG+OSP, ENIG+Gold finger, Flash gold(electroplated gold)+Gold finger(50u”), Immersion silver+Gold finger, Immersion Tin+Gold finger |
| Min. Annular Ring | 3mil |
| Aspect ratio | 10:1(HASL Lead-free 、HASL Lead、ENIG、Immersion Tin、Immersion silver、ENEPIG);8:1(OSP) |
| Impedance control | ±5ohm(＜50ohm), ±10%(≥50ohm) |
| Other Techniques | Blind/Buried Via, Gold Fingers, Press Fit, Via in Pad, Electrical Test |
